Custom Cold-Formed Steel Clip Design

“The Go-To Light Steel Framing Manufacturer for Custom Connectors.”

At The Steel Network, Inc. (TSN), we do custom cold formed steel connections like no one else. Our agile manufacturing processes allow us to create custom products on a daily basis without disrupting operations. We can work with you every step of the way, from looking at the Engineering details and figuring out what kind of clip you need, to fabricating your custom steel clip based on your specifications. We can even do load testing should you require it. If you can dream it, we can probably make it.

Example Customization Available:
  • Angles, steel connectors, shields, clips, brackets, lintels, corner guards, and more!
  • Place TSN’s patented Step Bushings anywhere in clip slots for friction free movement
  • Solve problems in new or retrofit construction
  • Pre-punch holes in clips for fastener efficiency
  • Ability to manufacture any shape, angle pitch, or slope
  • Any thickness up to & including 10ga (118mil)
  • Mill certified, traceable materials
  • Stainless steel option
  • Structural testing available
  • Competitive costs
  • Load testing for custom clips is available for a fee upon request.

Fill out the form below or call (888) 474-4876 to receive a quote for a custom clip.

Have a challenging condition that requires a custom clip/connector? Our agile manufacturing processes allow us to create custom products on a daily basis without disrupting operations.

Example Custom Connectors:

Custom VertiClip® SLS (extra long)

Custom VertiClip® SLS (extra long)

Retrofit situation where a stud does not run full height, creating a situation where a modified VertiClip SLS was lengthened to bridge a large gap from the structure of 26″.
Custom VertiClip® SLB

Custom VertiClip® SLB

Unique condition brought to TSN by Specialty Engineer. TSN helped design a solution and test & fabricate clips.
Custom VertiClip® SL with 4 Slots

Custom VertiClip® SL with 4 Slots

Custom VertiClip® Splice

Custom VertiClip® Splice

Connector for parallel wall studs. One stud rigidly attached to wall stud. The other stud accommodates vertical deflection of the primary structural frame.
Custom VertiClip® Splice (Notched)

Custom VertiClip® Splice (Notched)

Unique condition brought to TSN by Specialty Engineers. TSN helped design a solution and test & fabricate clips.

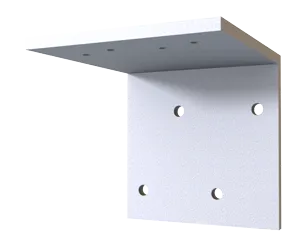

Custom Angle Made With Quarter Inch Stainless Steel

Custom Angle Made With Quarter Inch Stainless Steel

Custom VertiTrak® VTD

Custom VertiTrak® VTD (VertiClip® SLD with Elongated Slots)

VertiTrack VTD modified to accommodate 4″ slots in VertiClip SLD provides an effective, efficient solution for large demising walls typically seen in retail stores and theaters.
Custom VertiClip® Splice (Angled)

Custom VertiClip® Splice (Angled)

Unique condition brought to TSN by Specialty Engineers. TSN helped design a solution and test & fabricate clips.

Request A Custom Connector Quote

Learn how The Steel Network, Inc (TSN) can help you design a custom connector for your next project. TSN will work with your team to evaluate the project and provide you with all of the information you need to switch from wood to LSF and optimize your project.
